Name: 440W 400 Watt Bifacial Solar Panels Residential MBB 166mm M6 Mono PERC
Brand: Finergy Tech
Price: 0.22 USD

Brand Name : Finergy Tech

Model Number : 440W Bifacial PV Module

Certification : CE, IEC61215, IEC61730, TUV, CEC

Place of Origin : CHINA

MOQ : 100PCS

Price : 0.22~0.25 per watt

Payment Terms : T/T, L/C

Supply Ability : 10MW per month

Delivery Time : 10 work days

Packaging Details : Standard Plywood Packing

Cell Type : MBB M6 Bifacial Mono PERC Half Cell

Cell Brand : LONGi, TongWei, Jinko, JA

Color : White and Transparent

Power Output : Split Junction Box Design

Feature : Dual Power Generation from Both Sides

Warranty : 15 years + 30 Years

Contact Now

FSM430~FSM440M60HL (430W/435W/440W) MBB M6 MONO PERC Half-Cell PV Module

KEY FEATURES

Multi Busbar M6 Mono Half-Cell adopts PERC technology to guarantee higher output power and higher module efficiency.
Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
Excellent Anti-PID performance guarantee limited power degradation for mass production.
Around 0.55% annual power degradation and 30 years linear power warranty
Advanced glass and cell surface textured design ensure excellent performance in low-light environments (e.g. early morning, dusk and cloud, etc).
Module power increases 5%~25% generally (as per different reflective condition), lower LCOE and higher IRR.
Light weight design using transparent backsheet for easy installation and low BOS cost.
Three channels of EL automatic detections and power test before packing

Electrical Characteristics under STC

Module Type	FSM430M72HL	FSM435M72HL	FSM440M72HL
Maximum Power-Pmax (Wp)	430	435	440
Voltage at Maximum Power-Vmp (V)	40.6	40.8	41.0
Current at Maximum Power-Imp (A)	10.60	10.67	10.74
Open Circuit Voltage-Voc (V)	49.2	49.4	49.6
Short Circuit Voltage-Isc (A)	11.19	11.26	11.33
Module Efficiency-ηm (%)	19.5%	19.7%	19.9%
Operating Temperature	-40℃ to +85℃
Maximum System Voltage	1000V/1500V DC (IEC)
Power Tolerance	0~+4.99W
Temperature Coefficients of Pmax	-0.350%/℃
Temperature Coefficients of Voc	-0.289%/℃
Temperature Coefficients of Isc	0.048%/℃

Mechanical Characteristics

Production

440W 400 Watt Bifacial Solar Panels Residential MBB 166mm M6 Mono PERC

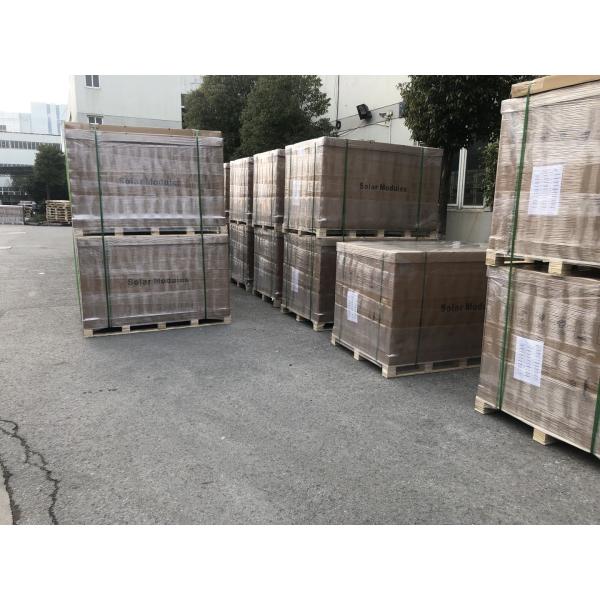

Packing & Loading

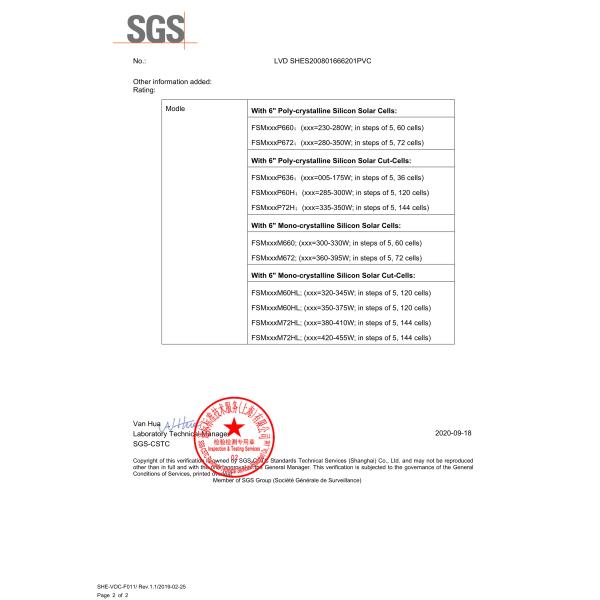

Certificate for Global Market
